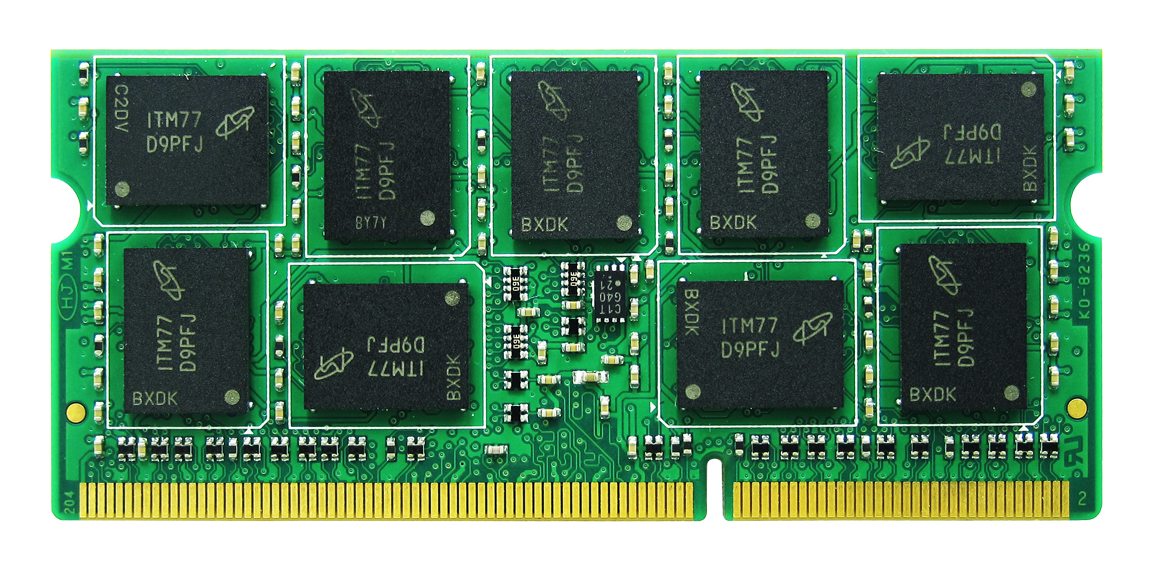

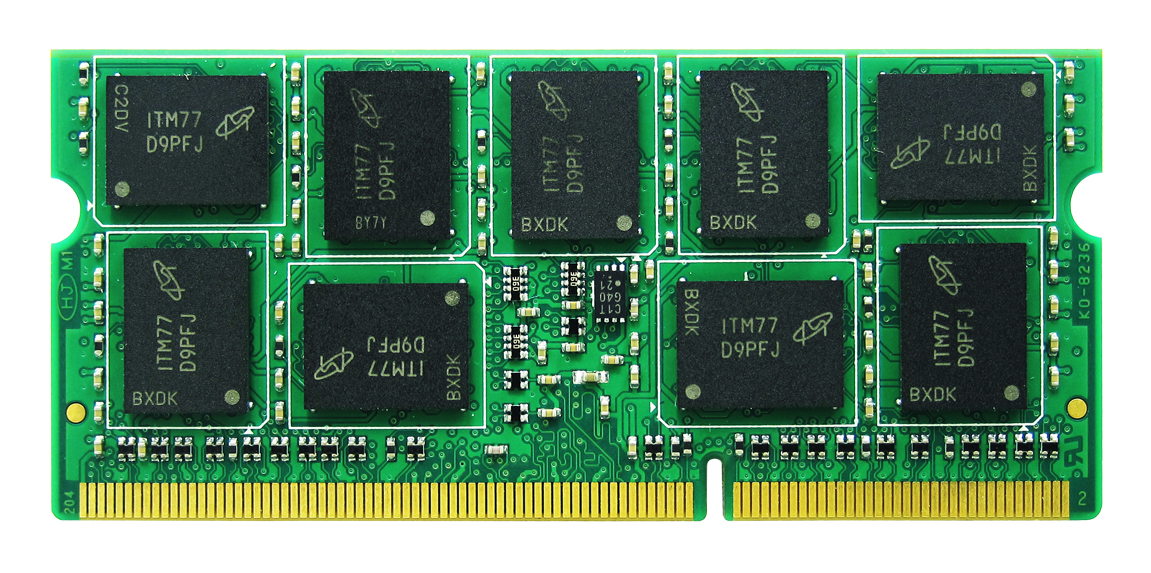

KINGMAX ECC DDR SO-DIMM
The rising of networking development and Big Data application boost data center and micro server market. Micro servers simplify structure, save cost and reduce space. While ECC SO-DIMM is compact, it is a perfect fit for micro server’s structure. KINGMAX ECC SO-DIMM utilizes ECC(Error check and correction) technology to check whether or not the data send to memory is correct. When error occurs, ECC can automatically correct it or ask system to resent the data. Thus, it is able to keep the system working normal and avoid sudden system failure due to memory error. Furthermore, it greatly increases system stability. KINGMAX ECC SO-DIMM includes speed of 1333MHz and 1600MHz, capacity of 4GB and 8GB. For the energy saving concern, KINGMAX also provides version of 1.35V, which can reduce 10% to 15% power while using ECC SO-DIMM.
KINGMAX Server DIMMs family also includes DDR3 Registered DIMM, ECC Unbuffered DIMM and VLP DDR3 Registered DIMM for various server applications. Registered DIMM is designed for mid-range to high-end severs which require higher performance, scalability and stability; the VLP DDR3 Registered DIMM is specially designed for blade or 1U rack server. The height of VLP DDR3 Registered DIMM in only 18.75mm — 35.7% lower than standard Registered DIMM. Space saving is not only improve airflow to increase the reliability of heat-sensitive system, but also makes it more eco-friendly.
KINGMAX VLP Registered DIMM
KINGMAX sever DIMMs meet JEDEC standard and are compatible with major server boards; all memory modules are rigidly screened and tested before leaving the factory, and are compliant to EU RoHS and conformed to CE.
Features:
Compliant with JEDEC standard
Available for low voltage design – 1.35V, saving 10 to 15% power consumption
Best product compatibility and reliability
Lead-free production
Specification:
Type | 240-pin Registered -DIMM | 240-pin VLP Registered -DIMM (Height: 18.75mm) |
240-pin ECC Unbuffered DIMM | 204-pin ECC SO-DIMM | ||||
Frequency | 1333MHz | 1600MHz | 1333MHz | 1600MHz | 1333MHz | 1600MHz | 1333MHz | 1600MHz |
CAS Latency | 9 | 11 | 9 | 11 | 9 | 11 | 9 | 11 |
Voltage | 1.5V+/- 0.075V | 1.35V+/- 0.075V | 1.35 or 1.5V | 1.35 or 1.5V | 1.5V+/- 0.075V | 1.35V+/- 0.075V | 1.35 or 1.5V | 1.35 or 1.5V |
Capacity | 4GB/8GB | 4GB/8GB | 4GB/8GB | 4GB/8GB | 4GB/8GB | 4GB/8GB | 4GB/8GB | 4GB/8GB |
For more information, http://www.kingmax.com/en-global/product/product/index/memory_module/Server_Memory
【About KINGMAX】
KINGMAX Group is the world’s first RAM/memory card module manufacturer that features vertical industrial integration capabilities, solid R&D capability and innovative cutting-edge patented technology. KINGMAX believes that “Quality comes from perfection in technology”, and its mission is to offer innovation and perfection in all its products. All the KINGMAX products therefore undergo rigorous tests before launching to the market to ensure the highest quality, and with their warranty & service, you can be completely assured that KINGMAX products are your best choice.
For more information, please visit the KINGMAX official website at: www.kingmax.com
Connect KINGMAX with Facebook: www.facebook.com/kingmax.global
